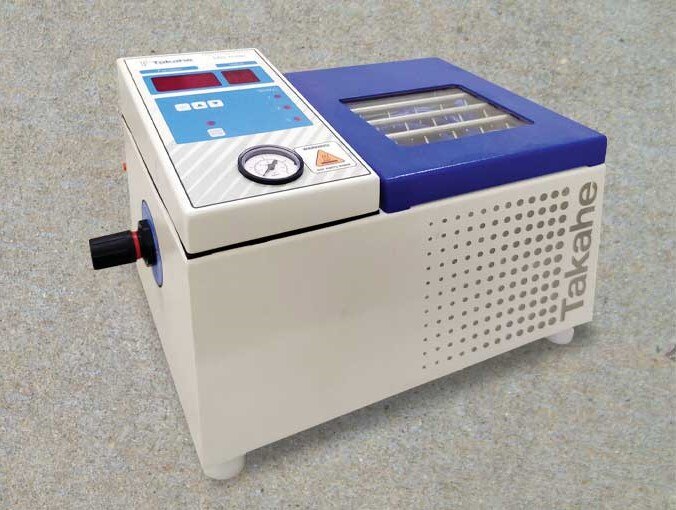

Introducing the Min-eVap Nitrogen Evaporator, a compact solution tailored for labs with low workloads and fixed requirements. Packed with features akin to the SpeedoVap LV, this mini nitrogen evaporator provides the convenience of low volume sample evaporation at an affordable cost, offering a swift alternative to traditional evaporation techniques.
Key Features:
• Unattended operation for up to 15 samples.
• Interchangeable racks for tube sizes ranging from 1.5 mL to 15 mL.
• Controlled water bath adjustable from ambient to 80 °C.
• Built-in nitrogen regulator for efficient operation.
• LED display for better visibility under a fume hood.
• Compact size requiring no hood space.
• Exhaust options open to the atmosphere or within a Fume Hood.
• Easy-to-use water drain pump.
• Alarms for various processes to draw user attention.
• Small footprint, ideal for space-conscious environments.
Applications: The Min-eVap is well-suited for small testing labs and educational institutions. Additionally, it finds great value in the food industry for in-house audits, facilitating the evaporation of solvents in the analysis of antibiotics, phenolics, and other pesticide extracts. Its versatility makes it ideal for sample volumes up to 15 mL, using Eppendorf tubes, Ria vials, or Tarson centrifuge tubes.
Conclusion: Experience efficient and cost-effective low volume sample evaporation with the Min-eVap Nitrogen Evaporator. Whether in small labs or educational settings, this compact solution delivers uniform results with a fast turnaround time, making it an invaluable tool for various applications.
___________________________________________________________________________________________________________________________________________________________
Technical Specifications :-
Maximum Number of Samples : 15
Max. sample volume : 15 mL
Rack Supplied : Any one rack listed
Water Bath Temperature : Ambient to 80 °C. (Up to 90°C if needed)
Timer Range : 1 min to 9.50 hours/indefinite
Gas Supply Requirements : Inlet pressure 100 psi
Gas Control : Gas can be turned ‘ON’ for any / each of five independent manifolds
Gas Regulator and Gas Gauge Range : Provided – manually adjustable.
Gas Flow required : 45 LPM
Exhaust : In-built , Duct hose provided
Power Requirements : 230 VAC at 50 Hz
Dimensions (WxDxH) : 17.25” X 13.5” X 11” (44 X 34 X 28 cms)
Net Weight : 9.5 kg
Shipping Weight : 15 kg
Technology : Sample Vortexing
Certifications : 2004/22/EC Measuring Instruments Directive
2014/35/EU Low Voltage Directive
2009/105/EC Simple Pressure Vessels
Racks available for the following test tube sizes
2 mL Flip/screw cap micro-centrifuge tubes/Eppendorf tubes
3 mL 10 X 75
4 mL 12 X 75 / Ria Vials
4 mL 14 x 45 Screw Top Vial
12 mL 16 X 100
15 mL 17 X 125
The Vertical Reciprocating Shaker is specifically designed for efficient and uniform shaking of Separating Funnels, making it an essential tool for solvent extraction and liquid-liquid separation processes. Its precise vertical motion ensures thorough mixing of immiscible liquids, resulting in faster and more consistent phase separation.
Built with a robust frame and the shaker accommodates multiple separating funnels of various capacities, ensuring reliable performance even under continuous operation. Adjustable speed control allows users to fine-tune the shaking intensity according to sample requirements, enhancing reproducibility and extraction efficiency.
Ideal for chemical, environmental, and pharmaceutical laboratories, the Vertical Reciprocating Shaker minimizes manual effort while ensuring consistent results across batches. It offers ease of use, long service life and low maintenance — making it a perfect choice for labs focused on precision and productivity in extraction applications.
* Product Specifications
RPM : 10 to 300
Time Range : 1 to 999 Minutes
Stroke : 8mm to 45 mm
Pulse Mode : Selectable
Time ON / OFF: 1 to 999 Seconds
Display : Bright LCD
Sample Platform Configuration : For Separating Funnels
Recording possible with Data Safe Software
A Nitrogen generator produces nitrogen gas from compressed air. Nitrogen is a colorless gas that makes up 78% of the Earth's atmosphere. It is non-flammable and non-reactive, making it an ideal gas for many industrial and commercial applications. Productive time of analysts and users spent in follow-up for cylinder procurement, change and daily installation of cylinders are eliminated. In operations, cylinders having high cylinder pressure creates a safety issue which is also now addressed with the Nitrogen Generator. With high requirement of Nitrogen for the Nitrogen evaporator and Nitrogen Solvent concentrator, the Nitrogen Generator is a simple solution for tedious logistics, high cost of cylinders and vendor dependency.
Brand/Make : Takahe Tech Solutions
Model Name/Number : N2 Genie-2
Capacity : 300 to 600 LPM*
Technology Used : PSA
Pressure : 100 psi
Purity : 96%
The Takahe Nitrogen Generator is a reliable and efficient solution designed to deliver high-purity nitrogen for laboratory and analytical applications with advanced PSA (Pressure Swing Adsorption) technology, it ensures consistent nitrogen generation directly from compressed air, eliminating the need for high-pressure gas cylinders. This system offers purity levels up to 96 % and 99.9%, making it ideal for instruments such as LC-MS, GC and Nitrogen Evaporators. Ensuring stable performance and reduced operational costs. With user-friendly controls, safety features and robust construction, it provides long-term reliability in demanding laboratory environments. Trusted across industries like pharmaceuticals, food testing, environmental analysis, and research institutions, Takahe’s Nitrogen Generators stand for quality, performance, and value. Generate nitrogen on demand — safely, efficiently, and economically — with Takahe Analytical Instruments.
Nitrogen generation method : PSA
Nitrogen Output : 50 lpm - 100 lpm* or 100 to 300 LPM* or 300 to 600 LPM*
Pressure : 100 psi
Control : Microprocessor
Display : LCD
* Compressor requirements differ for each of the models.
