Description

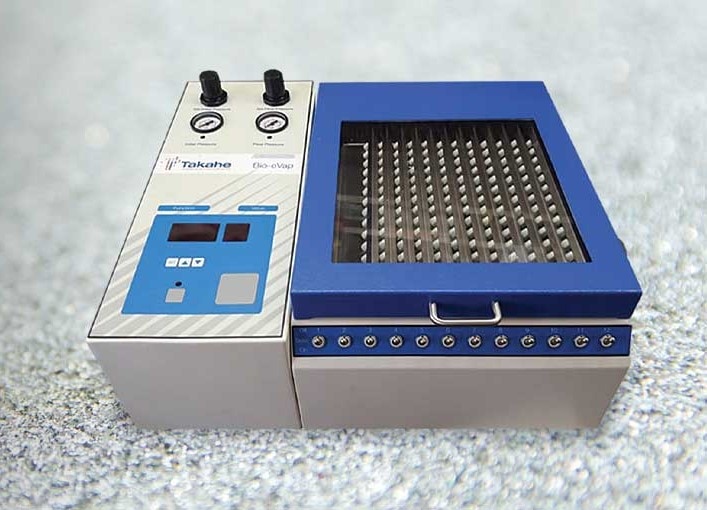

A game-changer in the CRO industry, the Bio-eVap 144 Position Nitrogen Evaporator is our significant contribution to large-scale bio-analytical studies. Designed to process 100 to 144 small volume samples simultaneously, this innovative evaporator ensures reproducibility, reduced Nitrogen consumption, and hands-free operation through cutting-edge technologies.
Key Features:
- Unattended operation with 144 sample capacity.
- Dual pressure settings to eliminate contamination risk during the evaporation process.
- In-built alarms with customizable settings, including over-temperature alert and door open sensor.
- Interchangeable racks for different tube sizes.
- Controlled water bath adjustable from ambient to 70°C.
- Built-in nitrogen regulator for efficient operation.
- LED display for better visibility under a fume hood.
- Compact size for large sample processing in the same space as a 50-sample processor.
- Removable nozzle tips for easy sonication, with no realignment required.
- Option for fixed nozzle tips.
- Safety features include audio and display alarms, auto-stop on door open, and exhaust options.
Unique Features:
- Set program cannot be changed once the process has begun.
- Specially identified row selector switches for flow control.
- Compatible rack for the Bio-eVap 144 can be used with TAKAHE SPE speX 144.
- Printing and data storage facility available on request.
Conclusion:
Experience unparalleled efficiency and convenience in large-scale bio-analytical studies with the Bio-eVap 144 Position Nitrogen Evaporator. This cutting-edge system not only enhances reproducibility but also ensures contamination-free processing, making it an indispensable tool in the advancement of CRO research.
Feature for Bio-eVap 100 position Nitrogen Evaporator :-
Maximum Number of Samples/positions : 100 (Matrix: 10 X 10)
Sample Volume : 1.5 mL, 4 mL, Upto 15 mL
Rack Supplied : Any one Rack listed based on requirement. (additional racks can be ordered separately)
Water Bath Temperature : Ambient to 70°C.
Gas Supply Requirements : Inlet pressure 100 psi
Gas Regulator : Manually adjustable
Gas Flow required : 200 LPM
Gas Gauge Range : 0 – 56 psi | 0-4 kg | 0- 3.9 bar
Technology : Vortexing
Dimensions (WxDxH) in cm : 37 X 70 X 25 | Open Door Ht: 68 cm
Net Weight : 17 kg
Shipping Weight : 30 kg
Feature for Bio-eVap 144 position Nitrogen Evaporator :-
Maximum Number of Samples/positions : 144 (Matrix: 12 X 12)
Sample Volume : 1.5 mL, 4 mL, Upto 15 mL
Rack Supplied : Any one Rack listed based on requirement. (additional racks can be ordered separately)
Water Bath Temperature : 1 min to 9. 50 hours/indefinite
Gas Supply Requirements : Inlet pressure 100 psi
Gas Regulator : Initial and Final Pressure Manually set
Gas Flow required : 260 LPM
Gas Gauge Range : 0 – 56 psi | 0-4 kg | 0- 3.9 bar
Technology : Vortexing
Dimensions (WxDxH) in cm : 57 X 57 X28 | Open Door Ht: 68 cm
Net Weight : 18.5 kg
Shipping Weight : 35 kg
Common Features :
Gas Control : Each Manifold can be turned ON as required. No multiple punches on Keyboard
Fume Extraction : Exhaust In-built, Vented out. Duct hose provided
Power Requirements : 230 VAC at 50 Hz (110 VAC – available on request)
Certifications : 2004/22/EC Measuring Instruments Directive.
2014/35/EU Low Voltage Directive
2009/105/EC Simple Pressure Vessels.
Test Tubes
Capacity in mL Dimensions in mm (OD X H)
1.5 mL Eppendorf Micro Centrifuge tubes
4 mL Ria vials 11.5 X 75 mm
15 mL 16 mm X 120 mm
15 mL 15 mL Tarson tube (only for BV 100)
