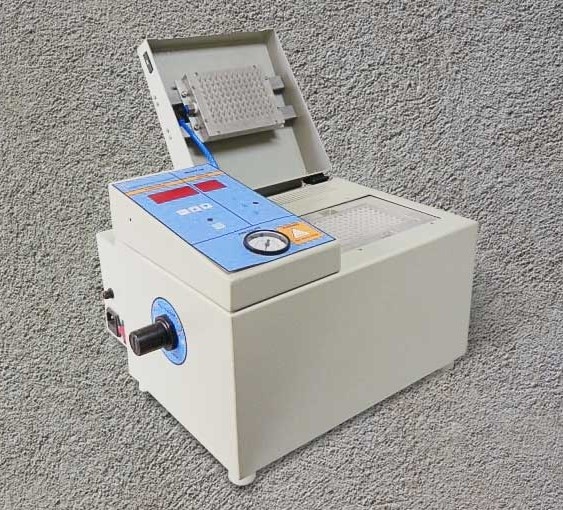

NITROGEN EVAPORATOR
For laboratories with specific requirements for solvent retention and reconstitution, the SpeedoVap Optical Endpoint Nitrogen Evaporator offers a tailored solution. Unlike standard High Volume Nitrogen Evaporators, this specialized instrument is designed for applications demanding precise endpoint volumes of 0.5 mL, 1 mL, or 2 mL.
Key Features:
• Unattended operation for endpoint evaporation as desired by user, eliminating the need for constant monitoring.
• Controlled water bath adjustable from ambient to 80 °C.
• Built-in nitrogen regulator for enhanced control.
• LED display for better visibility under a fume hood.
• Compact size, requiring minimal hood space.
• Exhaust open to the atmosphere or within a fume hood.
• Easy-to-use water drain pump with a small footprint.
Unique Features:
• Set program cannot be changed once the process has begun.
• User-requested endpoint volume options at 0.5 mL, 1.0 mL, or 2.0 mL.
• Individual process stops at each station as the endpoint is attained, ensuring precision.
Endpoint Test Tubes: Specially designed endpoint test tubes, available in volumes of 100 mL or 200 mL and calibrated for 0.5 mL, 1 mL, 2 mL, and 100 mL or 200 mL for seamless reconstitution.
Applications: Ideal for laboratories where a specific volume of solvent must be retained at the end of evaporation before analysis, the SpeedoVap Optical Endpoint Nitrogen Evaporator offers unparalleled control and precision.
Conclusion: Experience unmatched accuracy and convenience in evaporation with the SpeedoVap Optical Endpoint Automatic Nitrogen Evaporator. Designed for precise endpoint volume control, this instrument streamlines processes for laboratories with specific solvent retention requirements.
___________________________________________________________________________________________________________________________________________________________
Technical Specifications :-
Maximum Number of Samples : 6
Max. sample volume : 100 mL / 200 mL
End Point Setting : As per test tube at 0.5 mL,1.0 ml or 2.0 mL
Rack Supplied: One Rack with one pre-set endpoint supplied with system. For alternate requirement, connect with us.
Water Bath Temperature : Ambient to 80 °C.
Timer Range : 1 min to 9.50 hours/indefinite
Gas Supply Requirements : Min. inlet pressure 70 psi
Max. inlet pressure 100 psi
Gas Regulator and Gas Gauge Range : Provided – manually adjustable.
Station Control : Each station can be individually controlled at the programme start
End point technology : Micro processor based, Optical sensors
Gas Flow Required : 30 LPM
Exhaust : In-built , Duct hose provided
Power Requirements : 230 VAC at 50 Hz (110 VAC –available on request)
Dimensions (WxDxH) : 25“ x 14“x 13.25“ (63.5 x 35.6 x 33.7 cm)
Net Weight : 18 kg
Shipping Weight : 25 kg
Technology : Vortex Technology
Certifications : 2014/35/EU Low Voltage Directive
2014/35/EU Low Voltage Directive
2009/105/EC Simple Pressure Vessels.
ISO9001:2015
Gas control : Gas can be turned ‘ON’ for any/each of six independent stations
Test Tubes (Dimensions as per catalogue or availability)
Capacity in mL Dimensions in mm (OD X H)
100 mL 0.5 mL, 1 mL, 2.0 mL
200 mL 0.5 mL, 1 mL, 2.0 mL
We also supply the End Point test tubes with calibration certificate.
